Spare Parts RTI P-3

1- SL-1. Front (x1) 47- M3x5 DIN913 (x3)

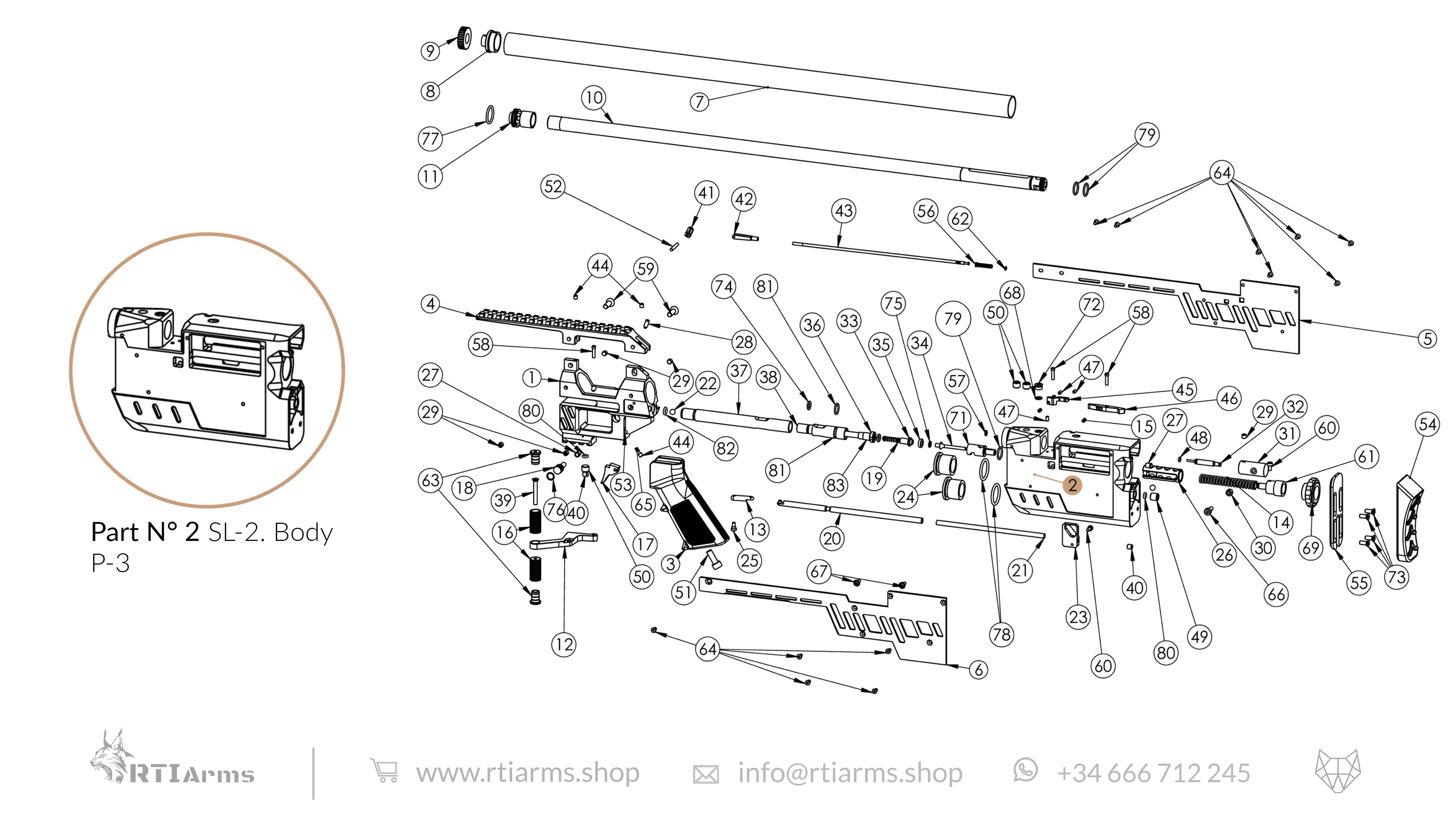

2- SL-2. Body P3 (x1) 48.1- O-ring pellet probe (70N) 1,5x1,5 (Cal .177) (x1)
3- AR-15 Grip (x1) 48.2- O-ring pellet probe (70N) 2,5x1,5 (Cal .22) (x1)
4- 3-2. Rail 20MOA (x1) 48.3- O-ring pellet probe (70N) 3,5x1,5 (Cal .25) (x1)

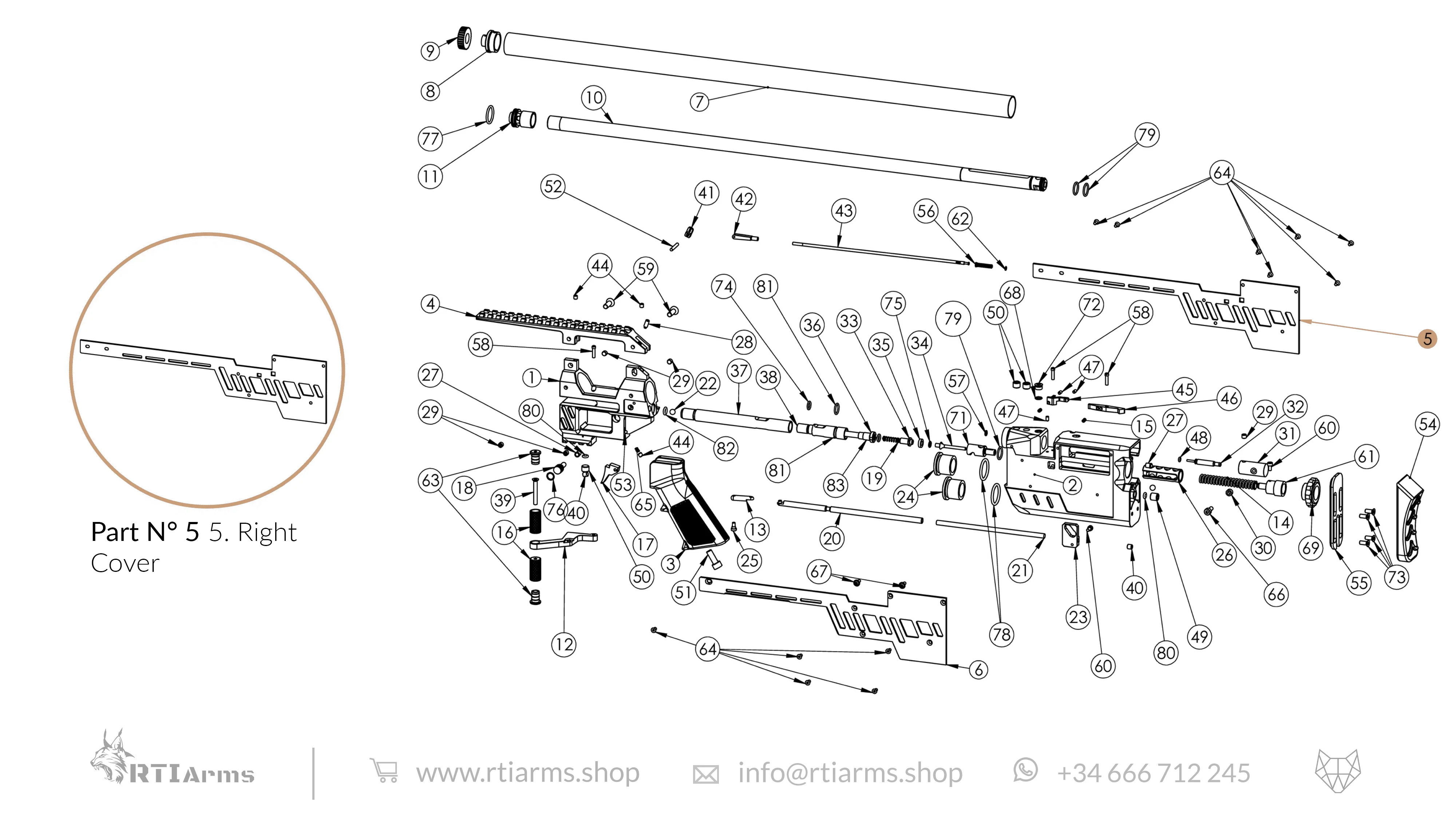

5- Right cover (x1) 48.4- O-ring pellet probe (70N) 5x1,5 (Cal .30) (x1)

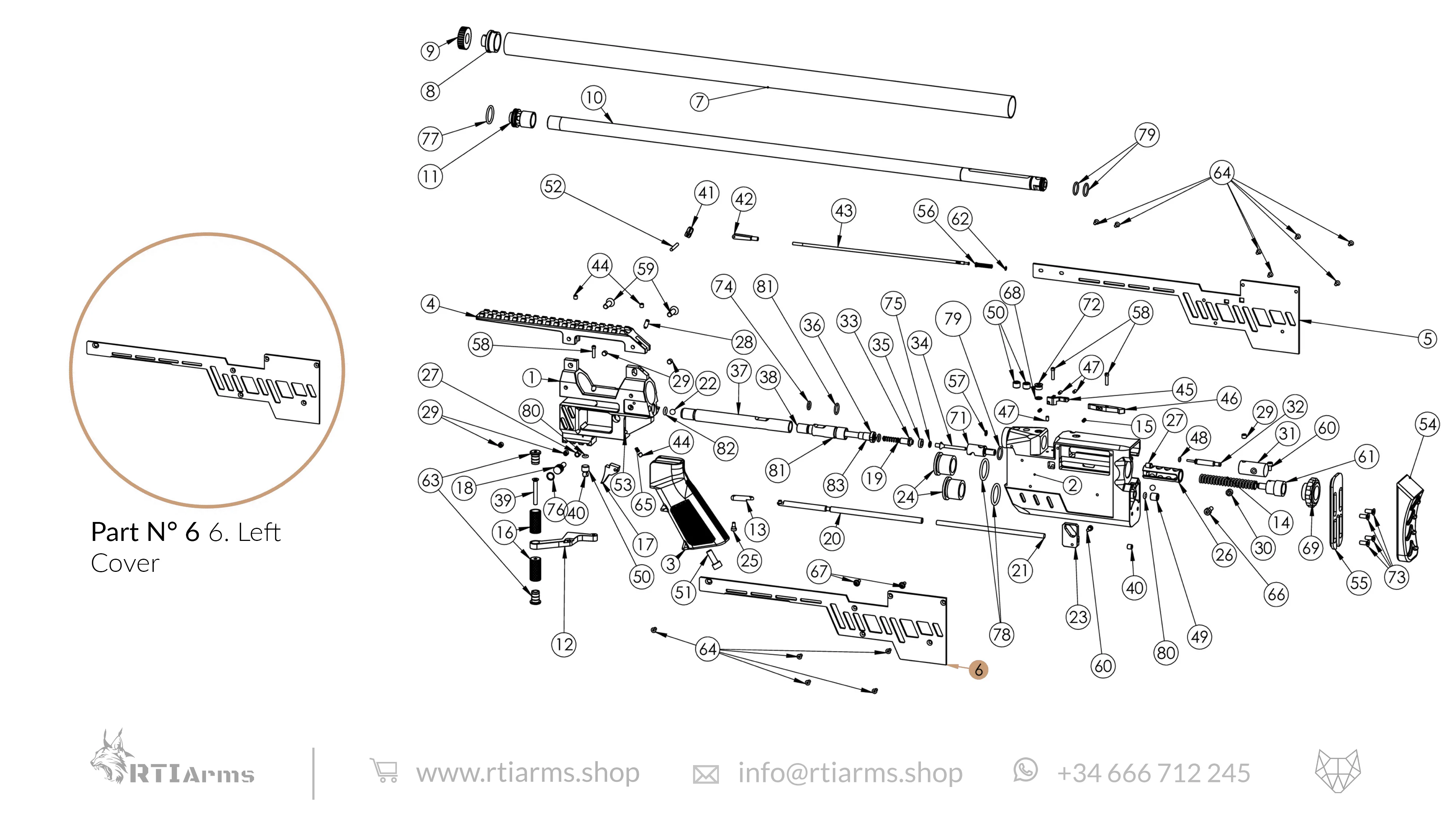

6- Left Cover (x1) 49- M8x8 DIN913 (x1)
7- 7-610. Shroud (x1) 50- M8x6 DIN913 (x3)
8- Shroud cap (x1) 51- M6x16 DIN912 (x1)
9- Shroud thread cover (x1) 52- Trigger axis (x1)
10- Barrel (x1) 53- Safety ball 3mm (x1)

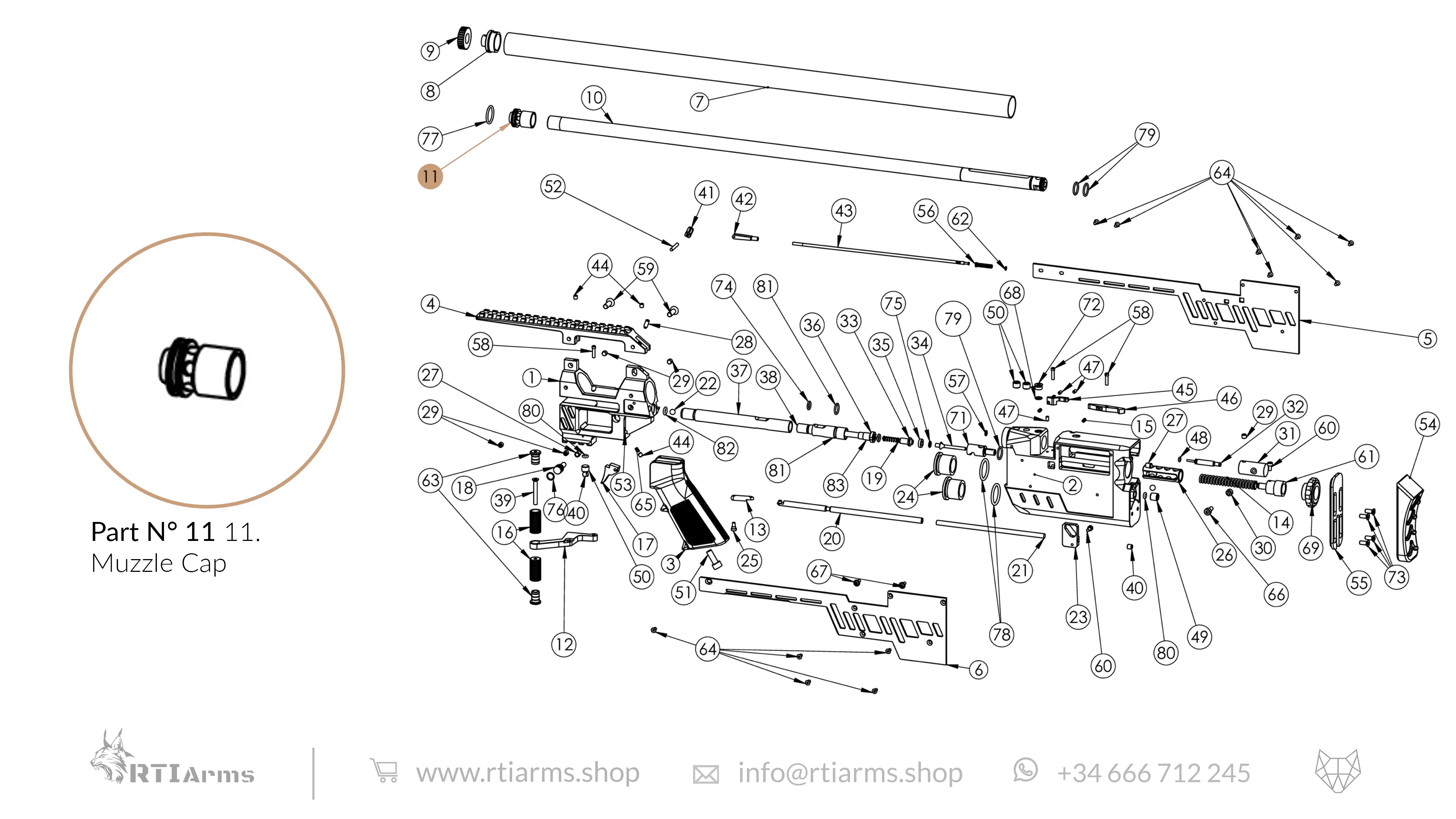

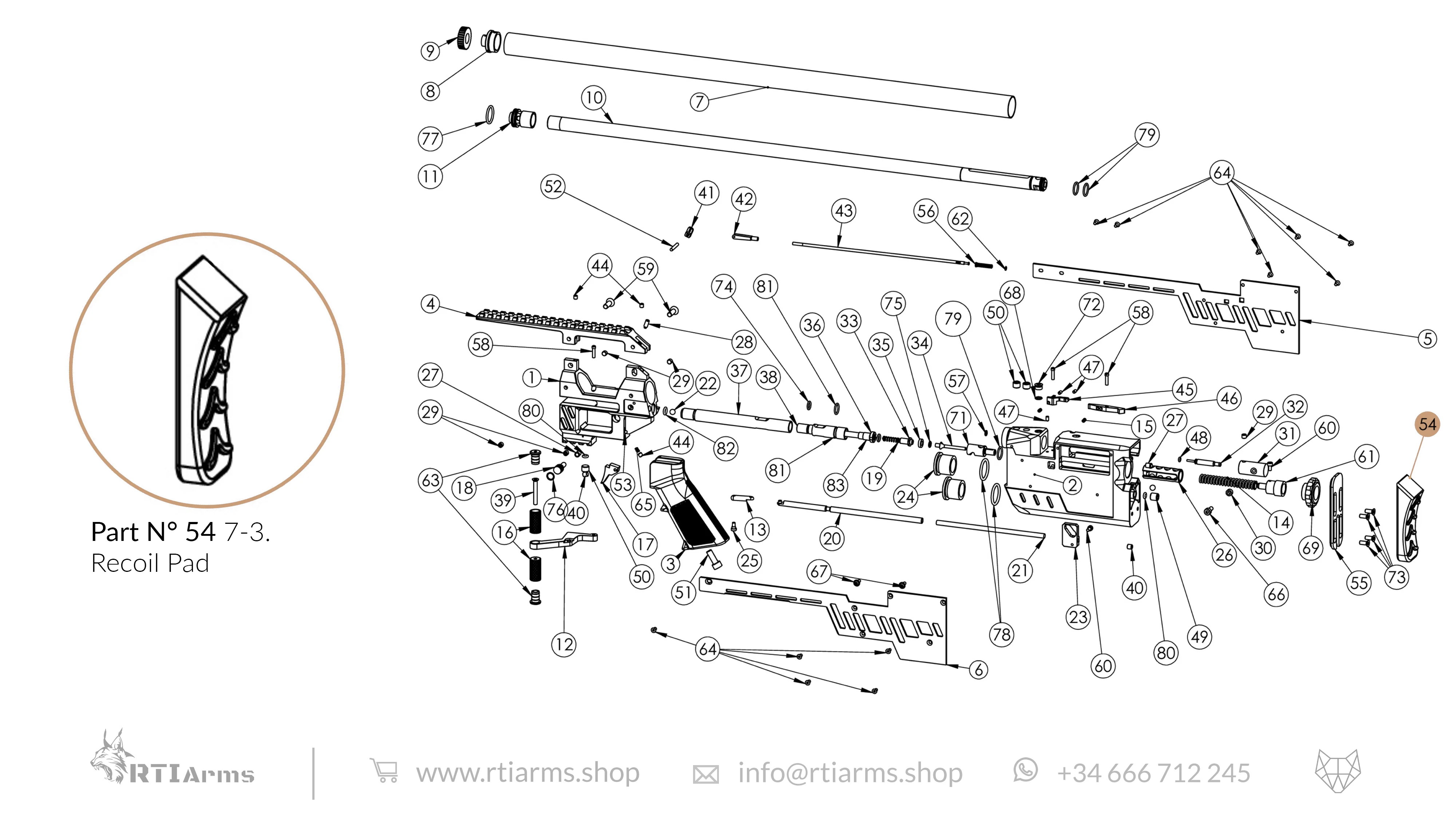

11- Muzzle cap (x1) 54- 7-3. Recoil pad (x1)

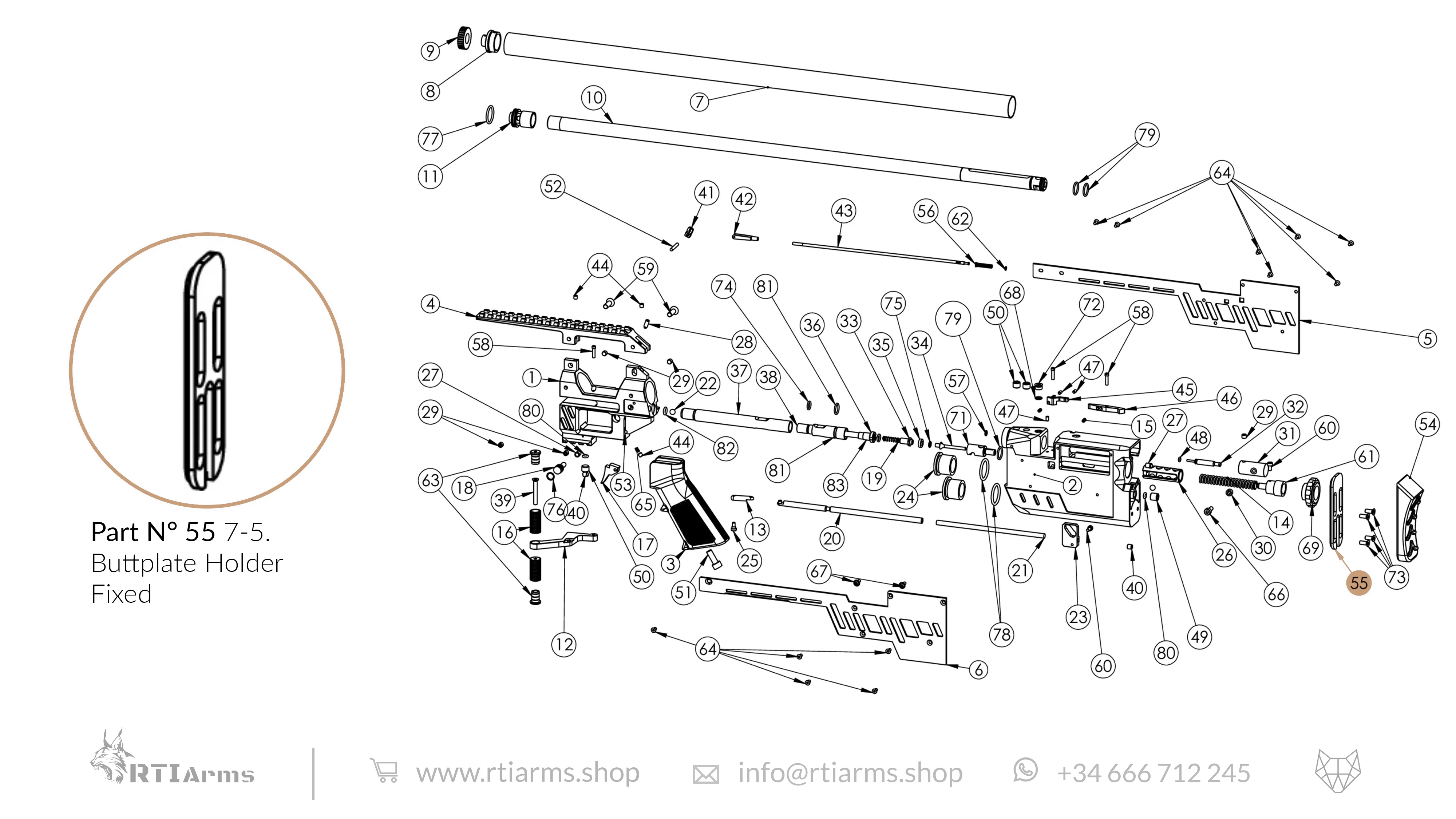

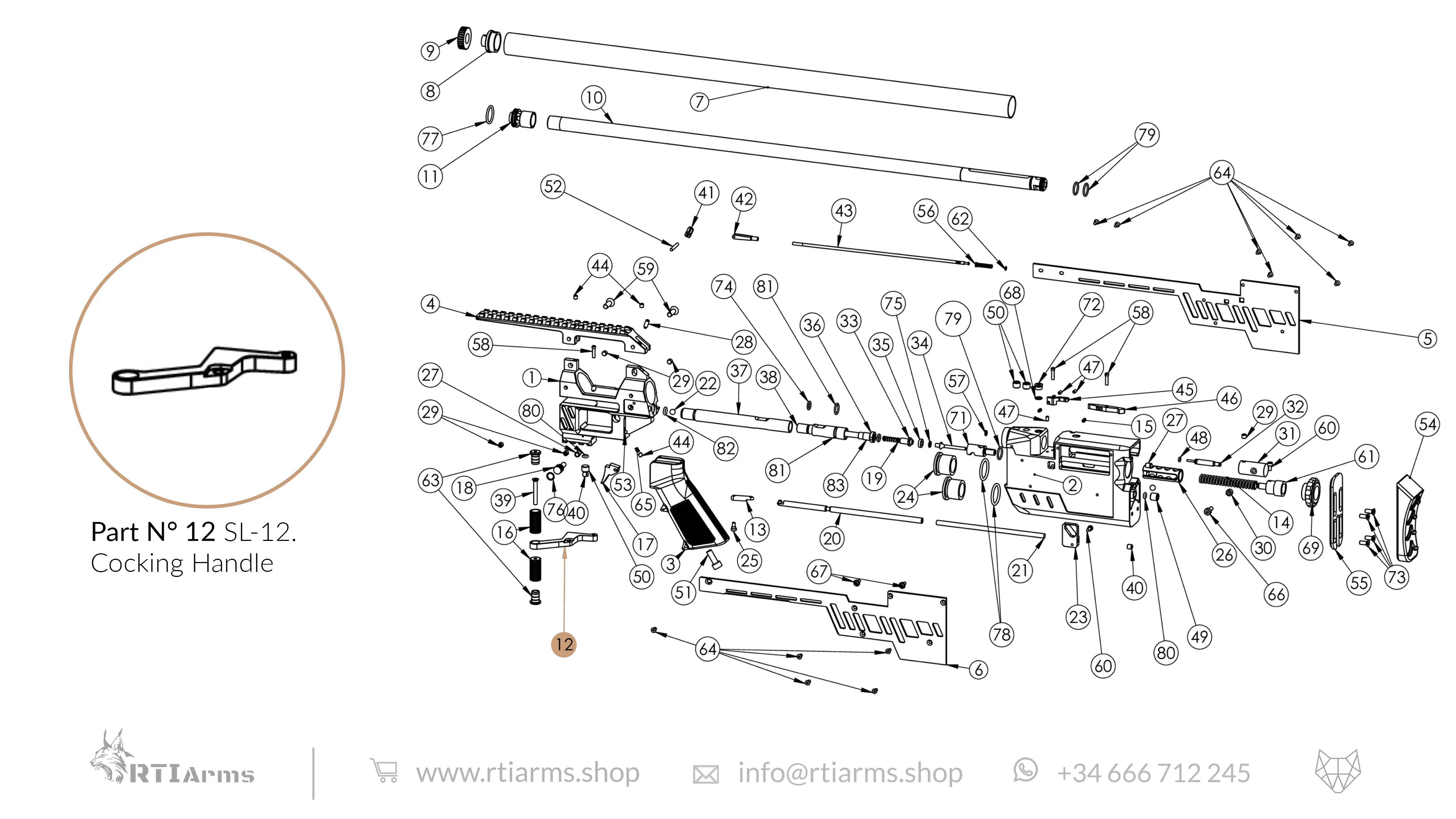

12- SL-12. Cocking handle (x1) 55- 7-5. Buttplate holder fixed (x1)
13- SL-13. Cocking rod link (x1) 56- Spring 3 (x1)

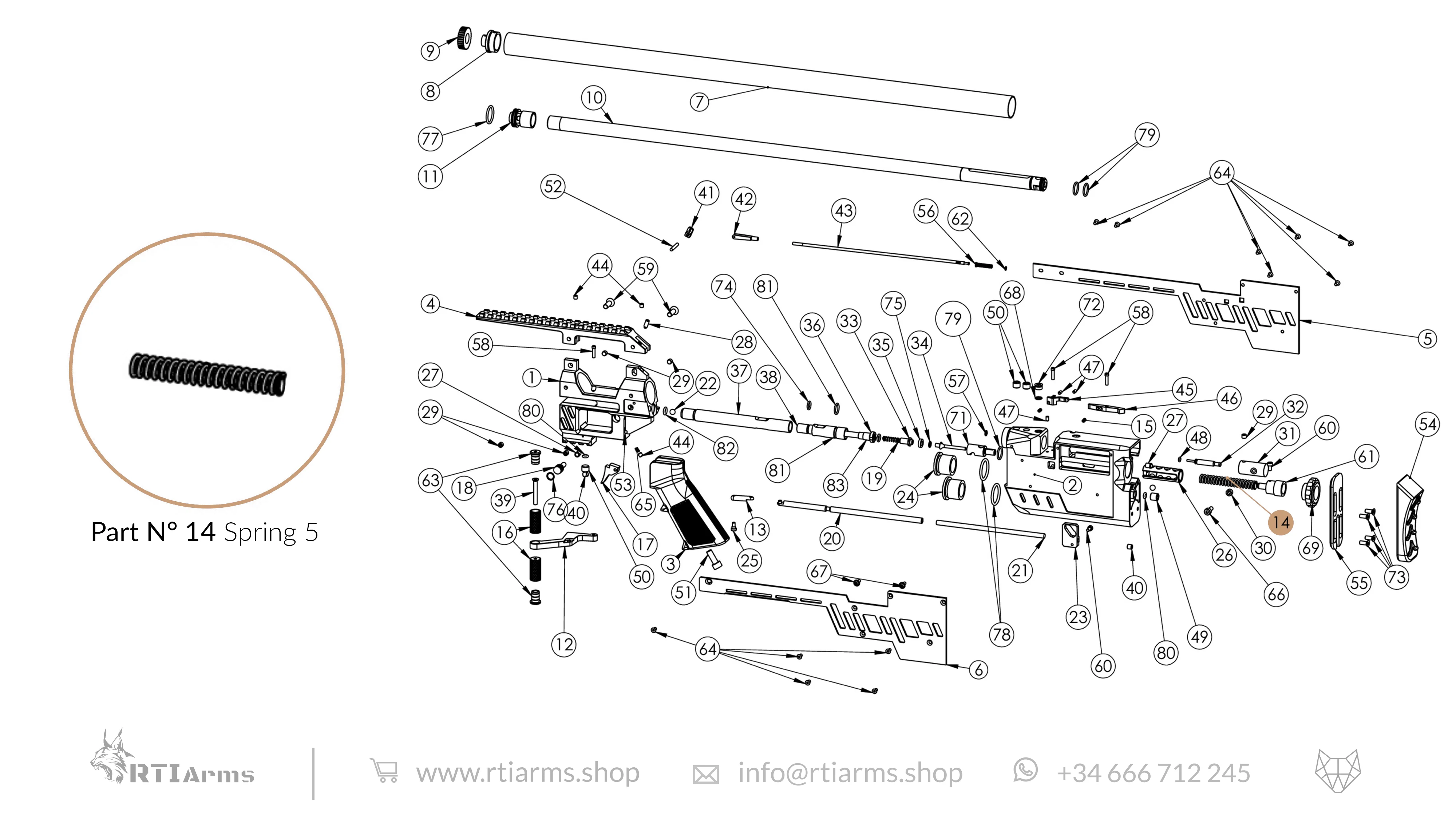

14- Spring 5 (x1) 57- O-ring ID 4x1 NBR70 (x1)
15- Spring 1 (x1) 58- Trigger screw (x3)

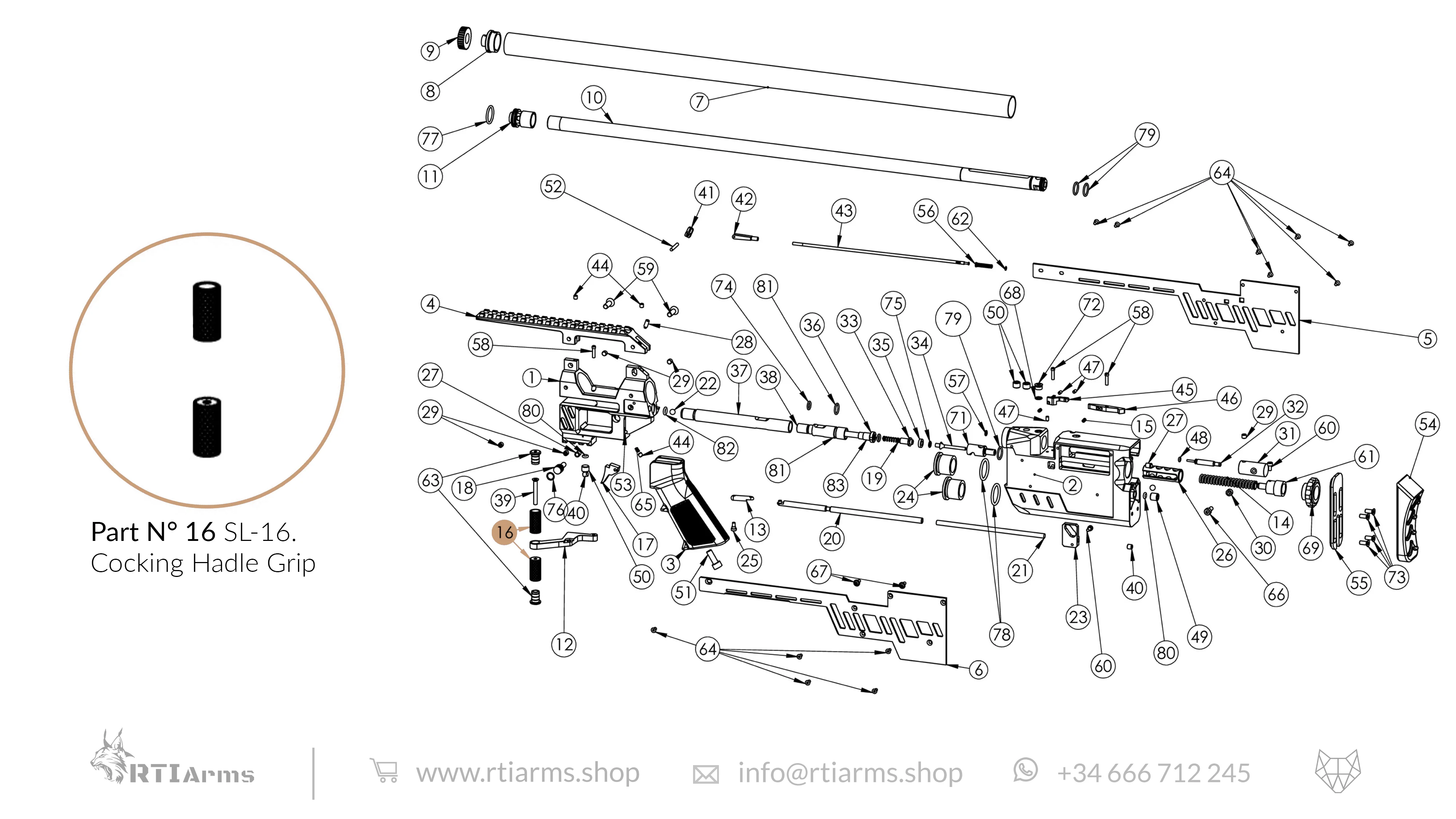

16- SL-16. Cocking handle grip (x2) 59- M5x16 DIN7991 (x2)
17- Trigger blade (x1) 60- M3x6 DIN912 (x2)

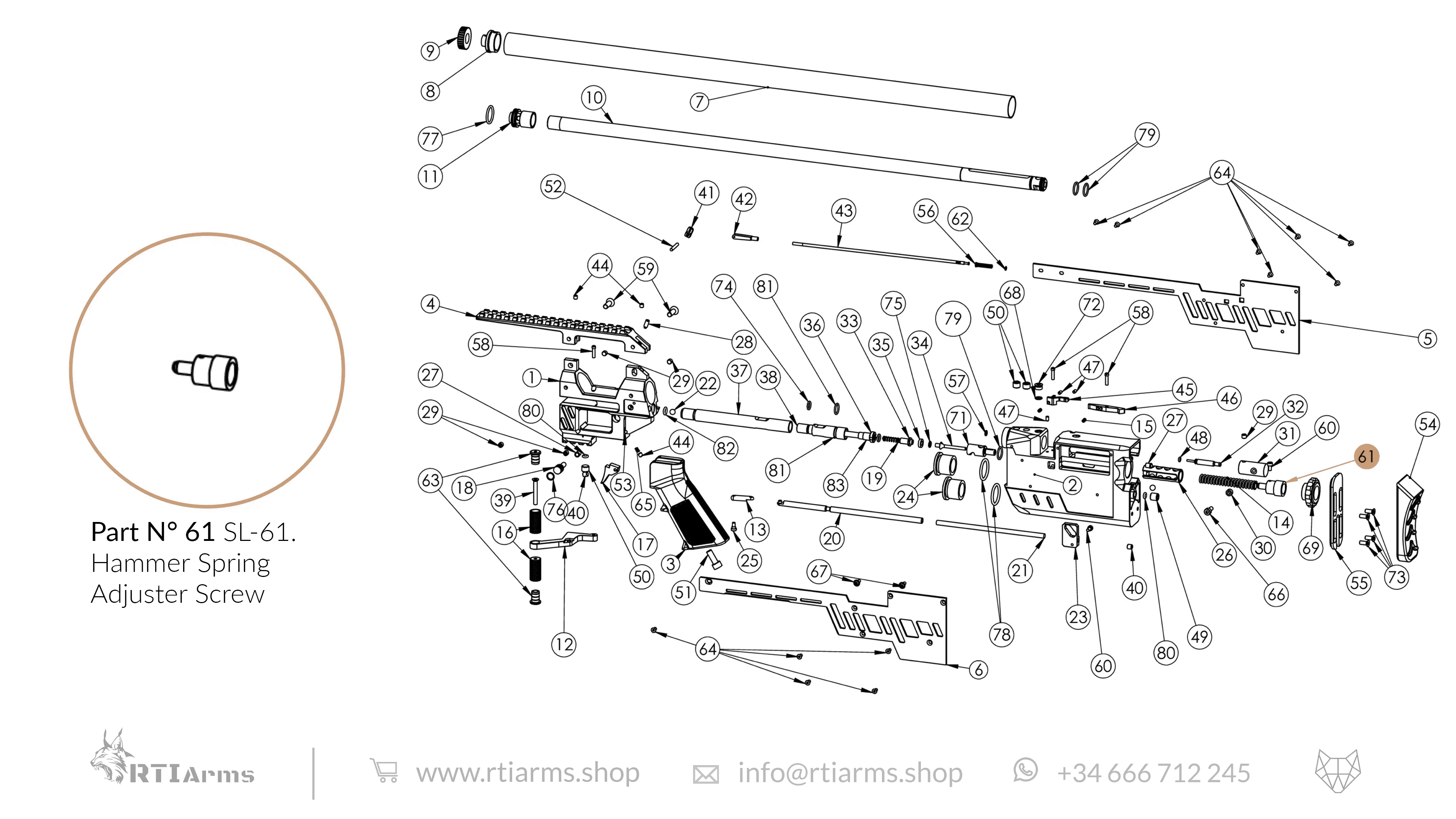

18- Safety knob (x1) 61- SL-61. Hammer spring adjuster screw (x1)

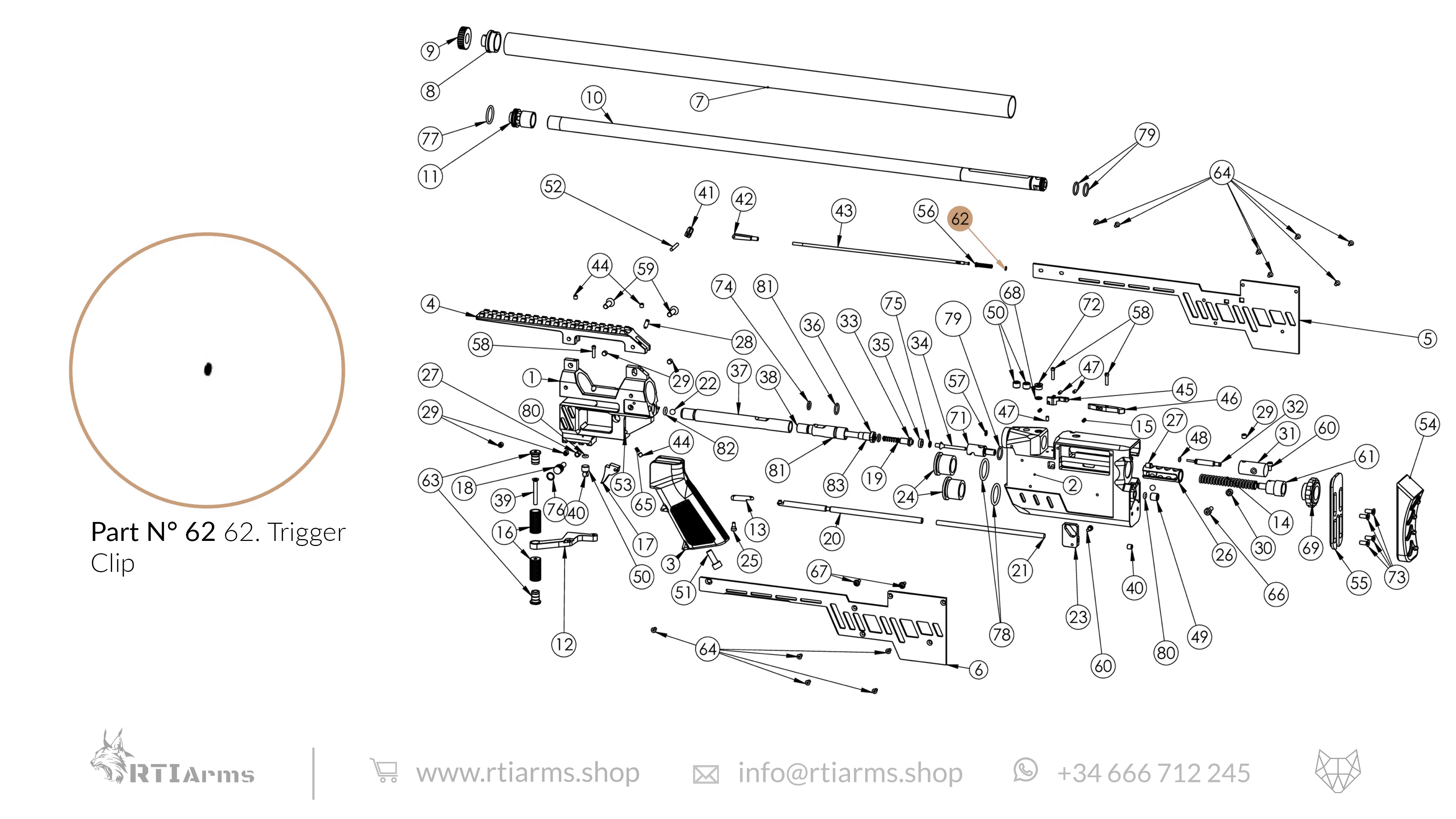

19- Spring 7 (x1) 62- Trigger clip (x1)
20- SL-20. Cocking rod (x1) 63- Cocking handle plug (x2)

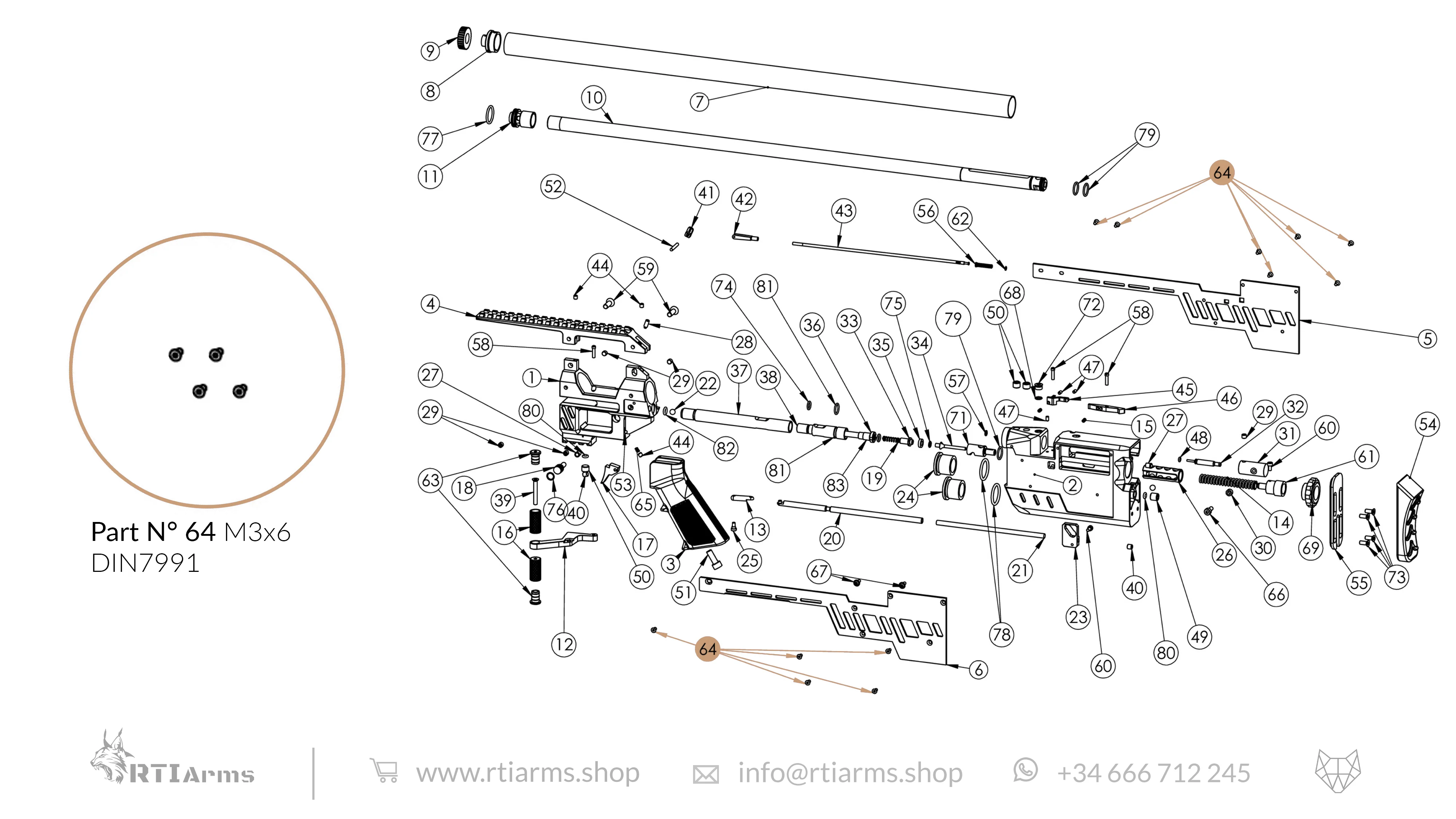

21- Cocking rod short (x1) 64- M3x6 DIN7991 (x12)
22- Ball 6mm (x2) 65- Spring 2 (x2)

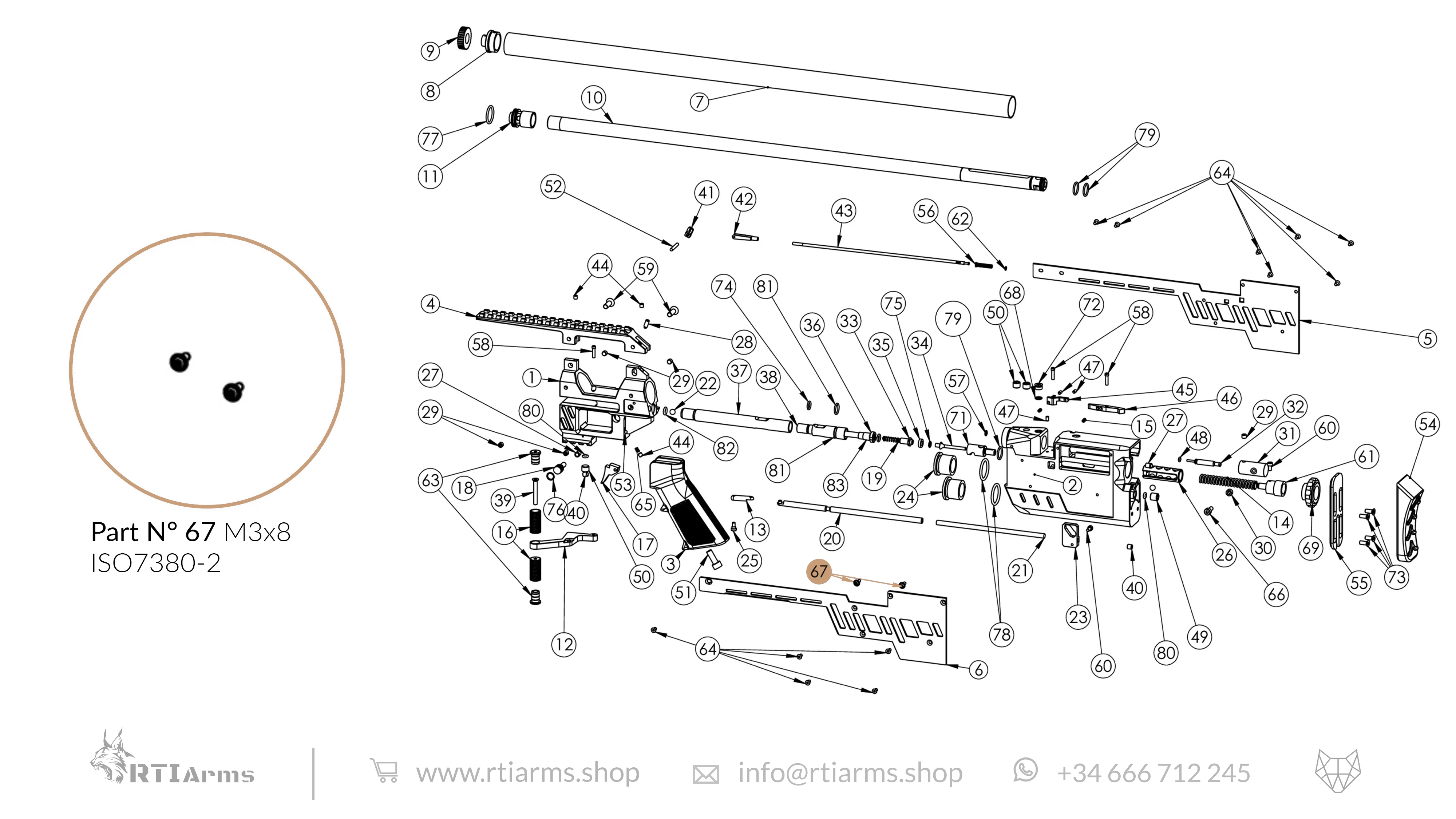

23- SL-23. Slider (x1) 66- M4x10 DIN912 (x1)
24- Plenum cap (x2) 67- M3x8 ISO7380-2 (x2)
25- SL-25. Cocking handle screw (x1) 68- O-ring ID 6x1 NBR70 (x1)

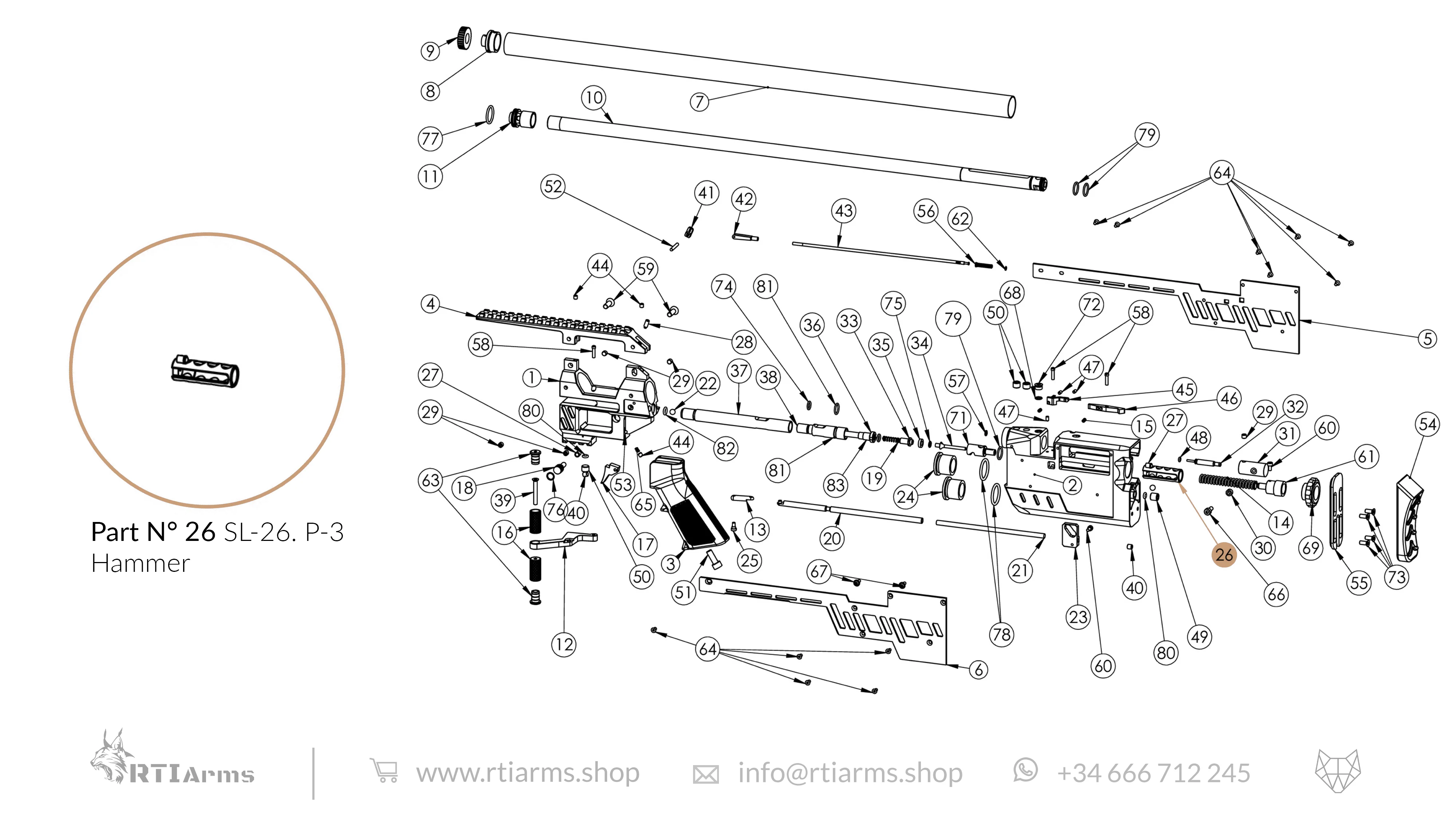

26- SL-26. P-3 Hammer (x1) 69- Gauss spring (x1)
27- Ball detent (x2) 70- SL-70. Cheek riser (x1)
28- M4x10 DIN913 Plastic tip (x1) 71- SL-71. Valve seat (x1)
29- M5x4 DIN913 (x5) 72- SL-72. Port plug (x1)

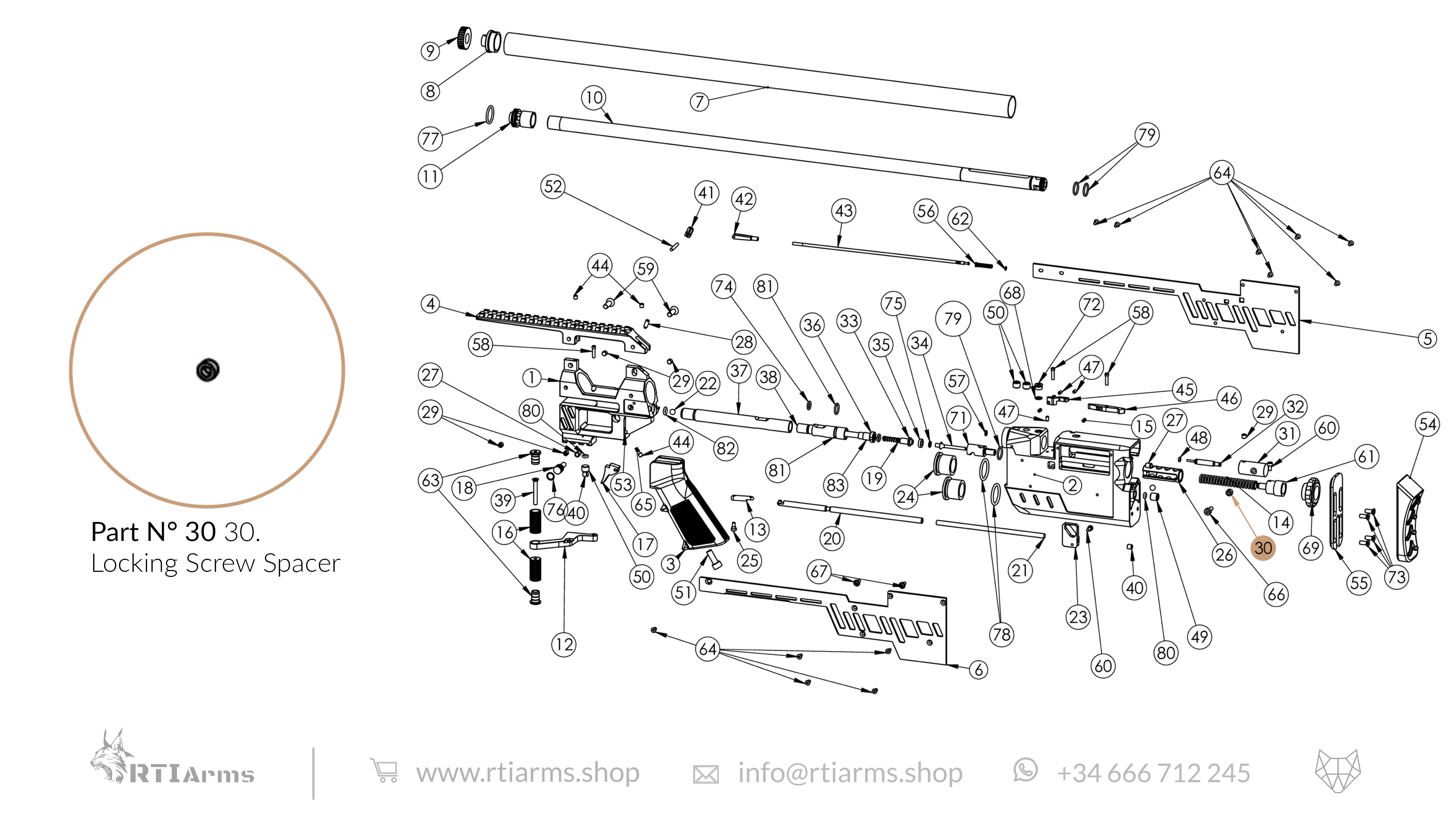

30- Locking screw spacer (x1) 73- M4x10 DIN7991 (x4)
31- Pusher guide (x1) 74- O-ring ID 7x1.5 NBR70 (x1)
32.A-32.B-32.C-32.D Pellet pusher .22 (x1) 75- O-ring ID 5x1 NBR70 (x1)

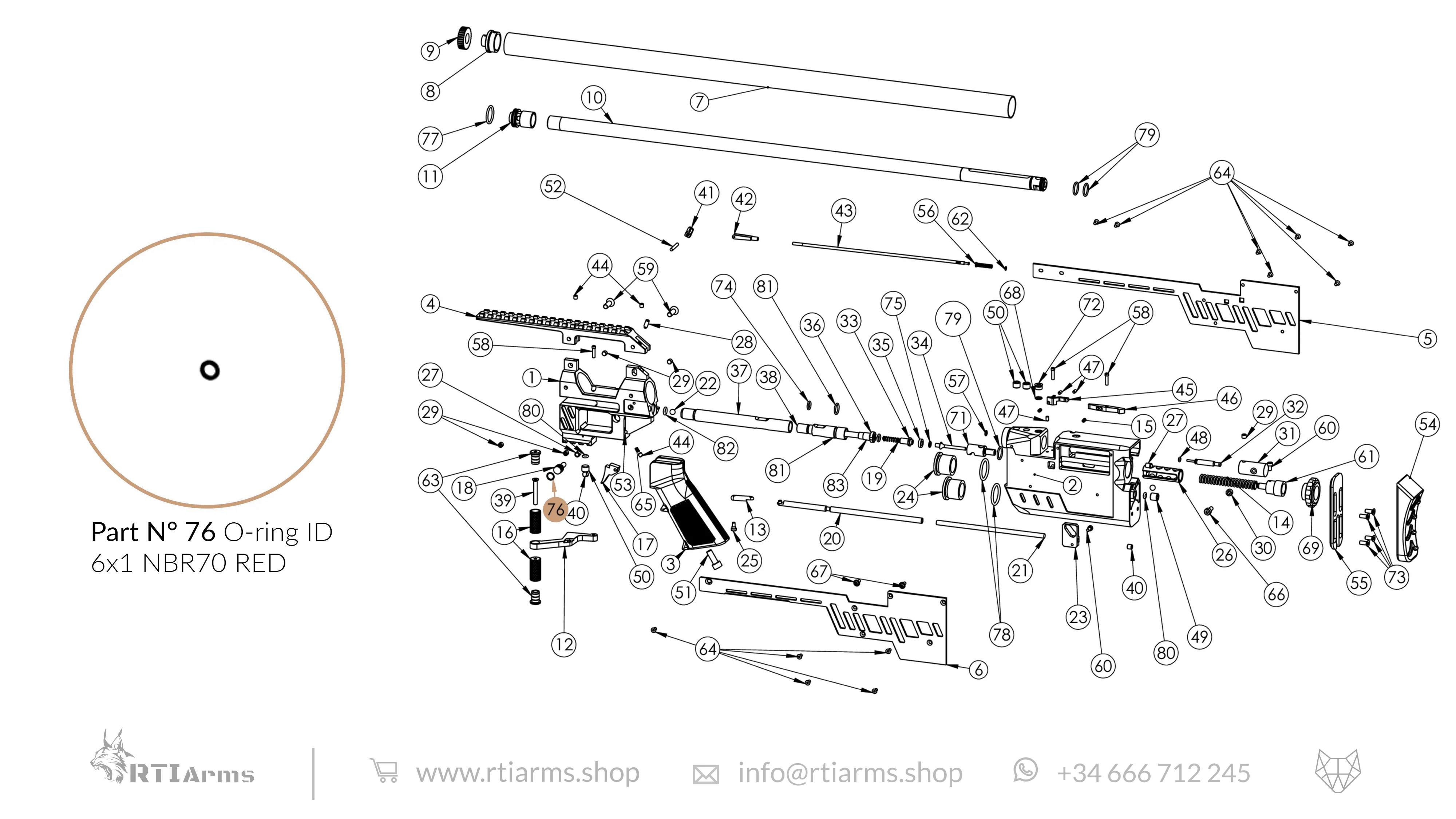

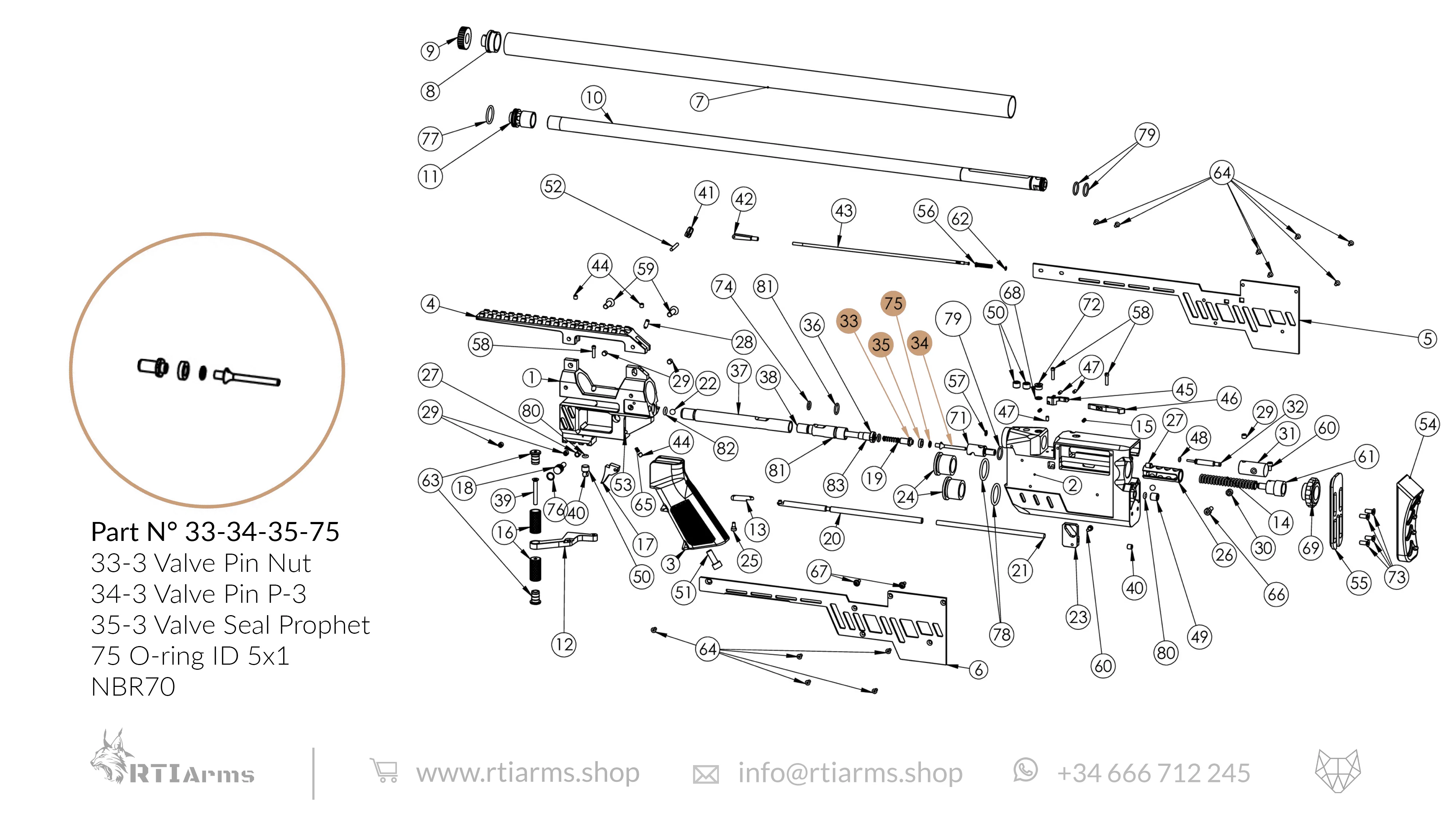

33- 33-3. Valve pin nut (x1) 76- O-ring ID 6x1 NBR70 RED (x1)
34- 34-3. Valve pin P-3 (x1) 77- O-ring ID 17x2 NBR70 (x1)
35- 35-3. Valve seal Prophet (x1) 78- O-ring ID 20x2.5 NBR70 (x2)

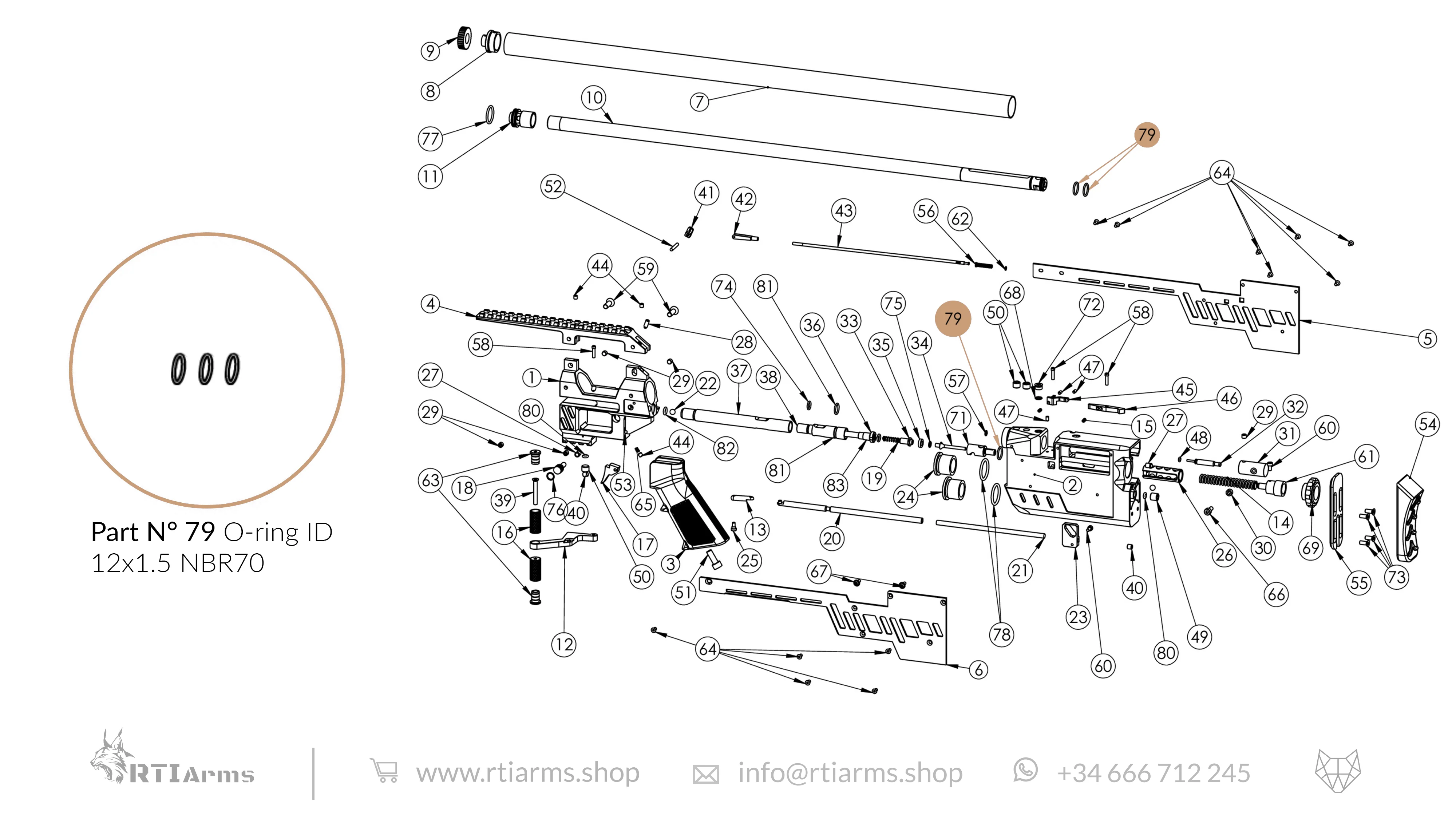

36- 36-3. Valve cylinder (x1) 79- O-ring ID 12x1.5 NBR70 (x3)

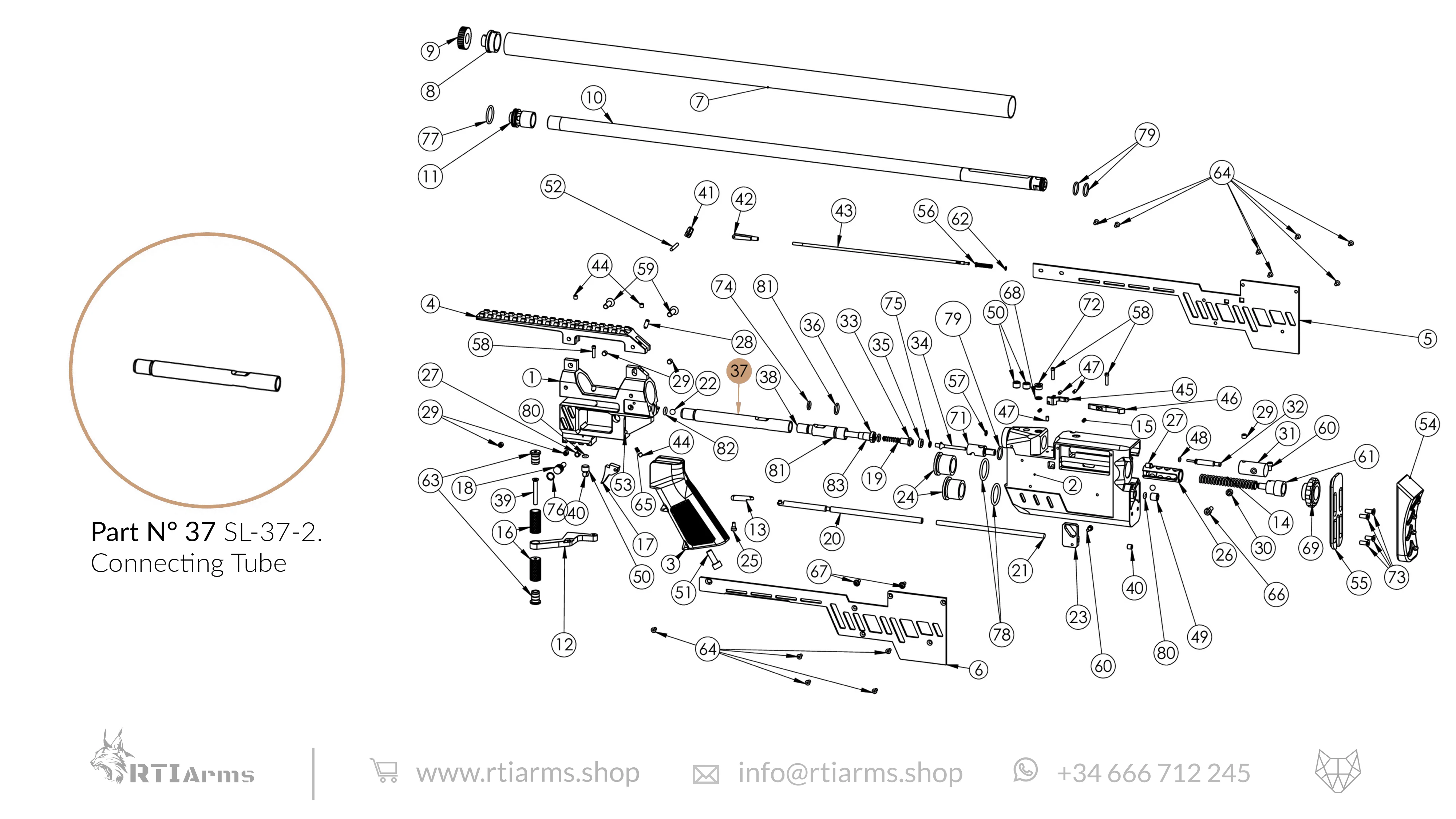

37- SL-37-2. Connecting tube (x1) 80- O-ring ID 3x2 NBR70 (x2)
38- SL-37-1. Retaining tube (x1) 81- O-ring ID 10x1.5 NBR70 (x1)
39- MA4x30 DIN7991 (x1) 82- O-ring ID 5x2 NBR70 (x1)
40- M5x5 DIN913 (x2) 83- O-ring ID 6x1.5 NBR90 (x1)
41- Trigger arm (x1)
42- Clevis (x1)

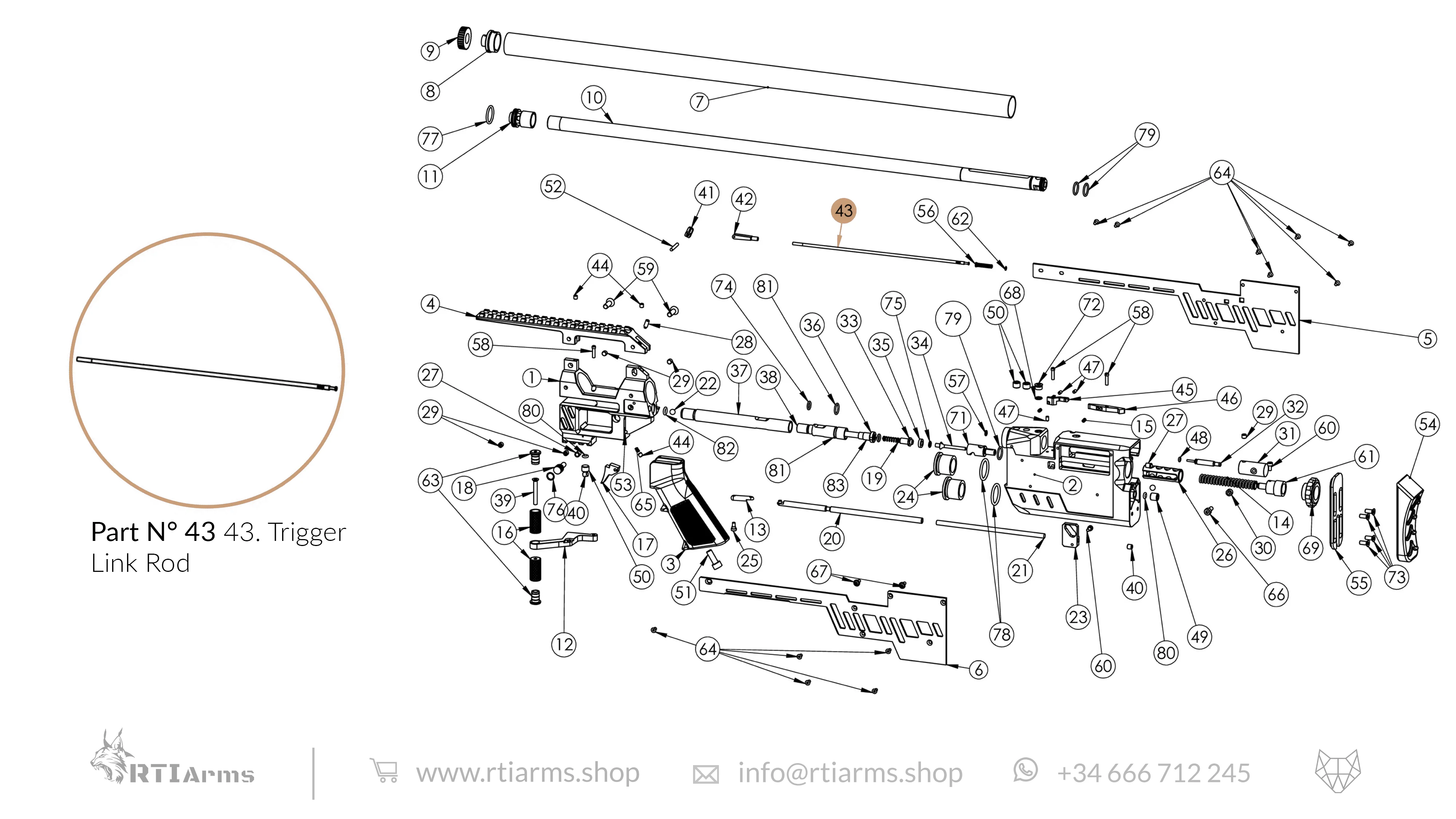

43- Trigger link rod (x1)
44- M4x4 DIN913 (x3)
45- Trigger sear (x1)
46- SL-46. Trigger pivot sear (x1)
Select REFERENCE
From $1.93

Original: $5.51

-65%
Spare Parts RTI P-3—

$5.51

$1.93

Product Information

Shipping & Returns

Description

1- SL-1. Front (x1) 47- M3x5 DIN913 (x3)
2- SL-2. Body P3 (x1) 48.1- O-ring pellet probe (70N) 1,5x1,5 (Cal .177) (x1)

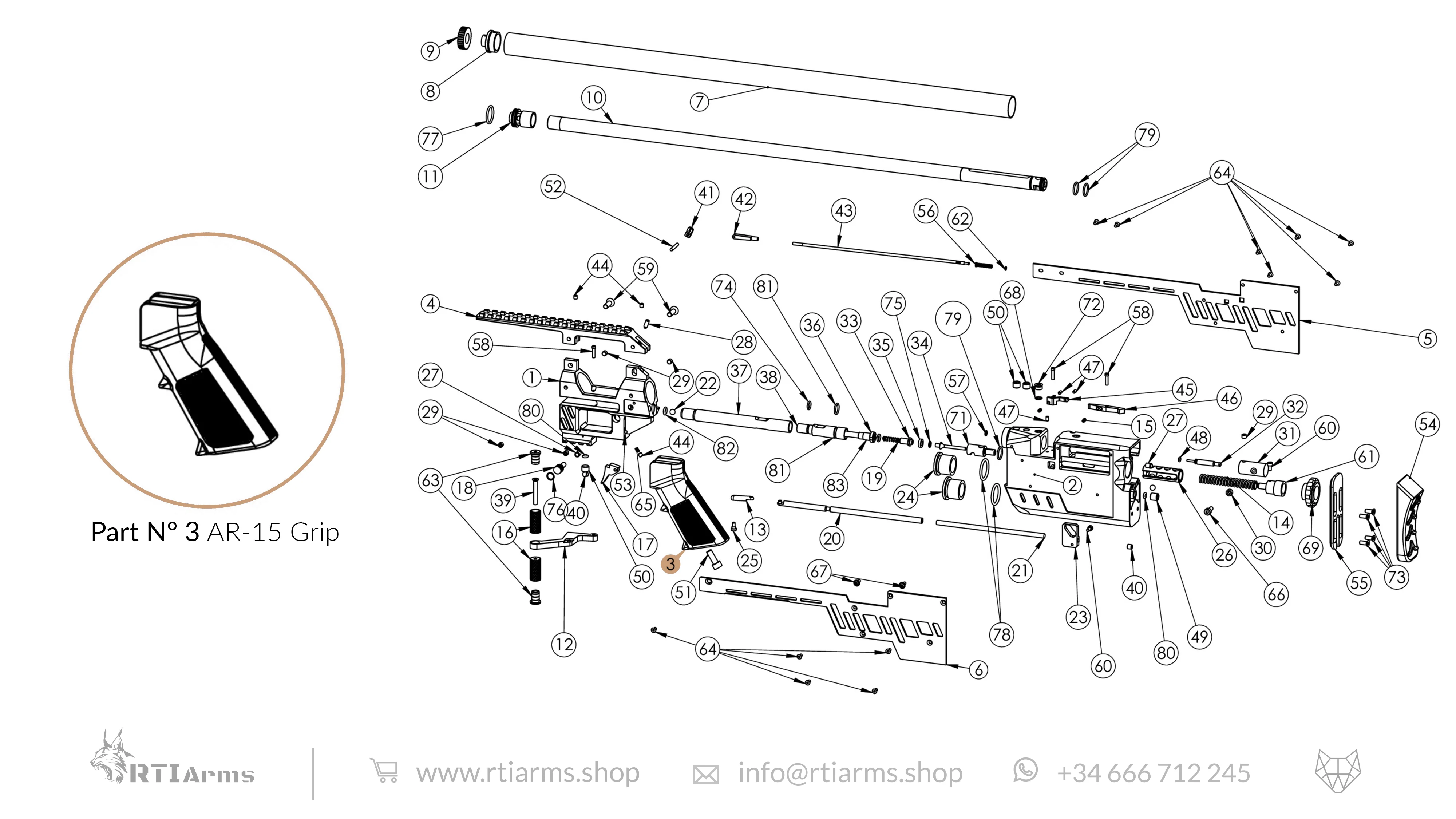

3- AR-15 Grip (x1) 48.2- O-ring pellet probe (70N) 2,5x1,5 (Cal .22) (x1)
4- 3-2. Rail 20MOA (x1) 48.3- O-ring pellet probe (70N) 3,5x1,5 (Cal .25) (x1)
5- Right cover (x1) 48.4- O-ring pellet probe (70N) 5x1,5 (Cal .30) (x1)
6- Left Cover (x1) 49- M8x8 DIN913 (x1)
7- 7-610. Shroud (x1) 50- M8x6 DIN913 (x3)
8- Shroud cap (x1) 51- M6x16 DIN912 (x1)
9- Shroud thread cover (x1) 52- Trigger axis (x1)
10- Barrel (x1) 53- Safety ball 3mm (x1)
11- Muzzle cap (x1) 54- 7-3. Recoil pad (x1)
12- SL-12. Cocking handle (x1) 55- 7-5. Buttplate holder fixed (x1)
13- SL-13. Cocking rod link (x1) 56- Spring 3 (x1)
14- Spring 5 (x1) 57- O-ring ID 4x1 NBR70 (x1)
15- Spring 1 (x1) 58- Trigger screw (x3)
16- SL-16. Cocking handle grip (x2) 59- M5x16 DIN7991 (x2)
17- Trigger blade (x1) 60- M3x6 DIN912 (x2)
18- Safety knob (x1) 61- SL-61. Hammer spring adjuster screw (x1)
19- Spring 7 (x1) 62- Trigger clip (x1)
20- SL-20. Cocking rod (x1) 63- Cocking handle plug (x2)
21- Cocking rod short (x1) 64- M3x6 DIN7991 (x12)

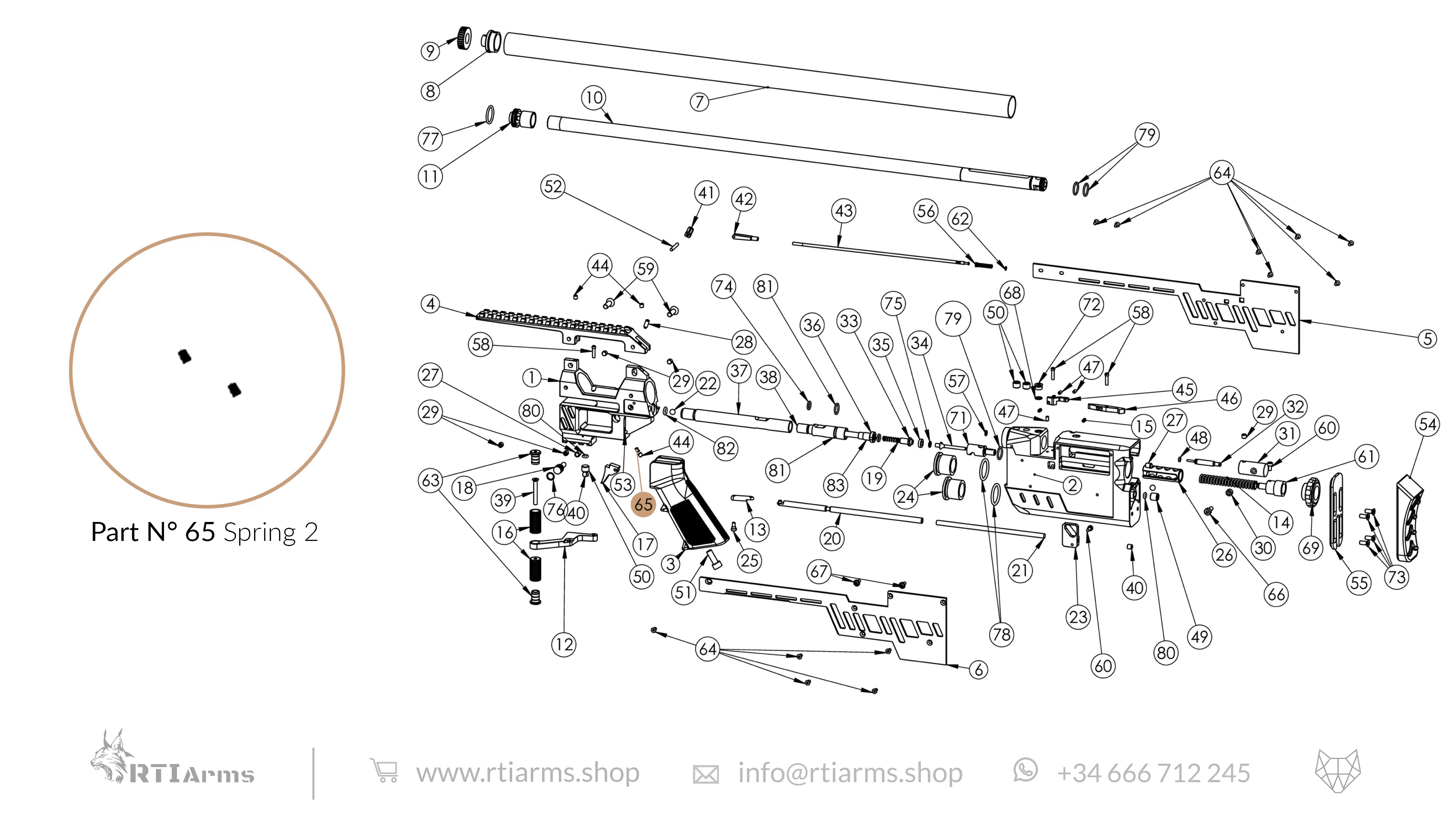

22- Ball 6mm (x2) 65- Spring 2 (x2)
23- SL-23. Slider (x1) 66- M4x10 DIN912 (x1)
24- Plenum cap (x2) 67- M3x8 ISO7380-2 (x2)
25- SL-25. Cocking handle screw (x1) 68- O-ring ID 6x1 NBR70 (x1)
26- SL-26. P-3 Hammer (x1) 69- Gauss spring (x1)
27- Ball detent (x2) 70- SL-70. Cheek riser (x1)

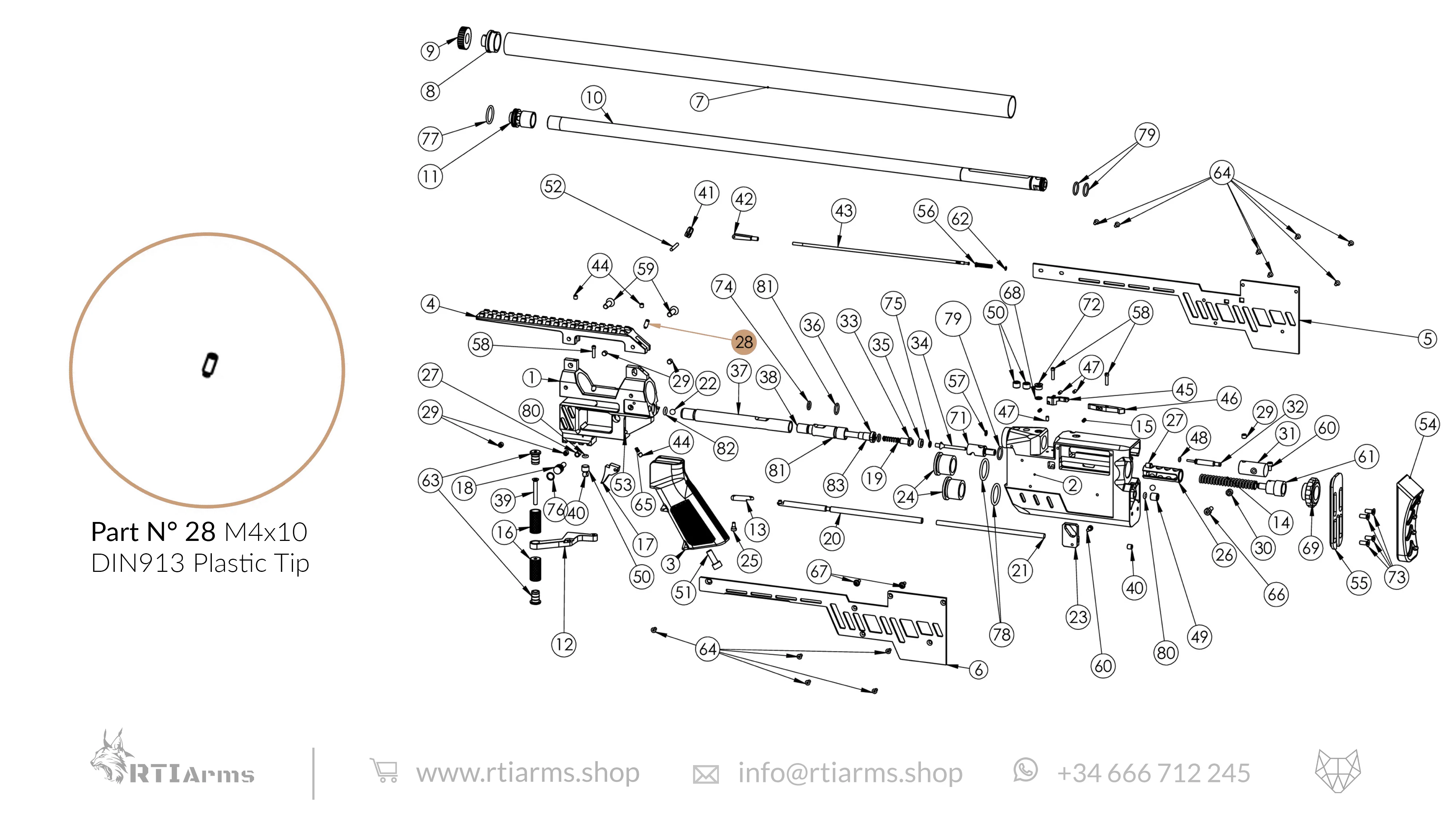

28- M4x10 DIN913 Plastic tip (x1) 71- SL-71. Valve seat (x1)
29- M5x4 DIN913 (x5) 72- SL-72. Port plug (x1)
30- Locking screw spacer (x1) 73- M4x10 DIN7991 (x4)
31- Pusher guide (x1) 74- O-ring ID 7x1.5 NBR70 (x1)
32.A-32.B-32.C-32.D Pellet pusher .22 (x1) 75- O-ring ID 5x1 NBR70 (x1)
33- 33-3. Valve pin nut (x1) 76- O-ring ID 6x1 NBR70 RED (x1)

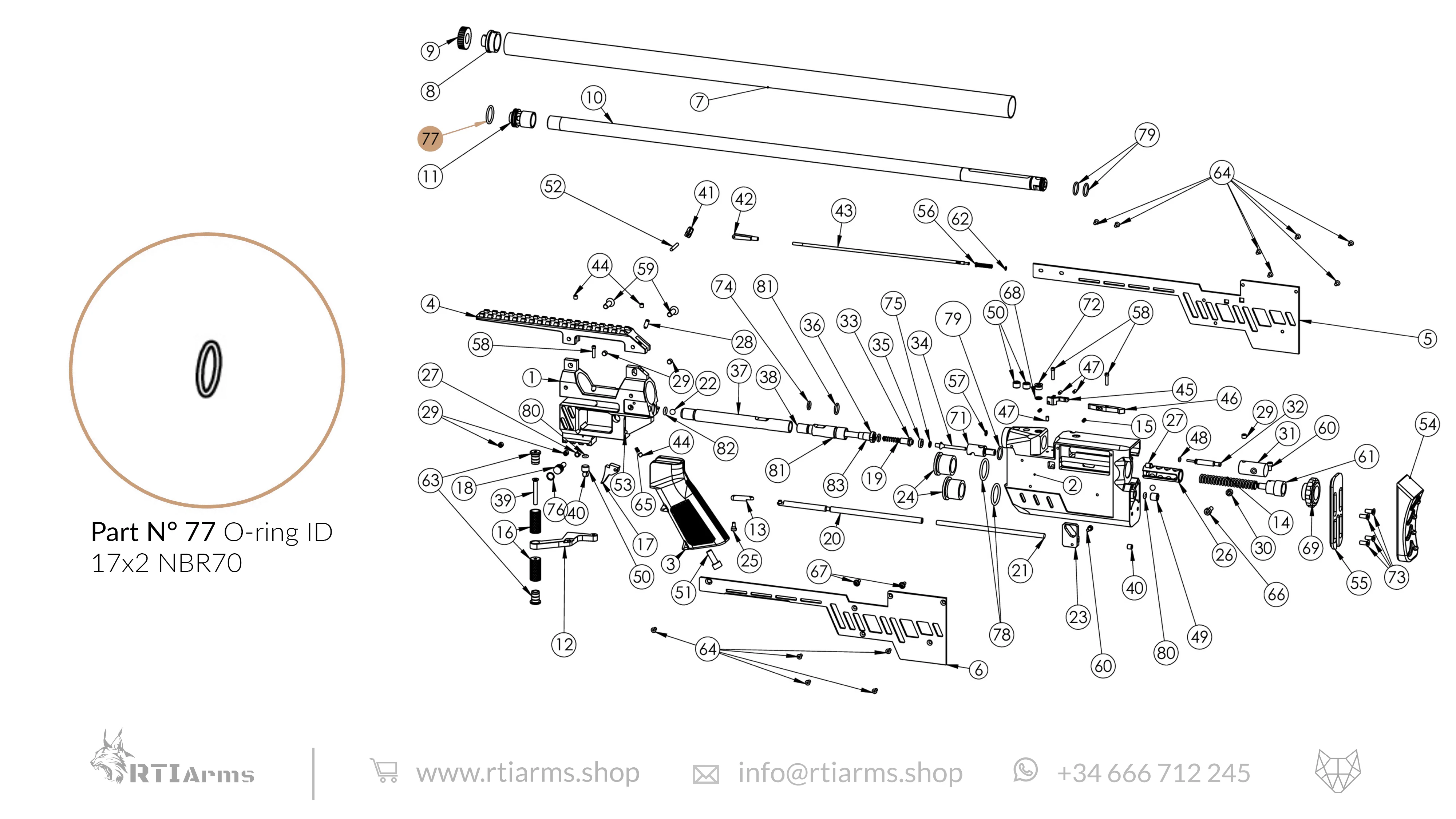

34- 34-3. Valve pin P-3 (x1) 77- O-ring ID 17x2 NBR70 (x1)
35- 35-3. Valve seal Prophet (x1) 78- O-ring ID 20x2.5 NBR70 (x2)
36- 36-3. Valve cylinder (x1) 79- O-ring ID 12x1.5 NBR70 (x3)
37- SL-37-2. Connecting tube (x1) 80- O-ring ID 3x2 NBR70 (x2)
38- SL-37-1. Retaining tube (x1) 81- O-ring ID 10x1.5 NBR70 (x1)
39- MA4x30 DIN7991 (x1) 82- O-ring ID 5x2 NBR70 (x1)
40- M5x5 DIN913 (x2) 83- O-ring ID 6x1.5 NBR90 (x1)

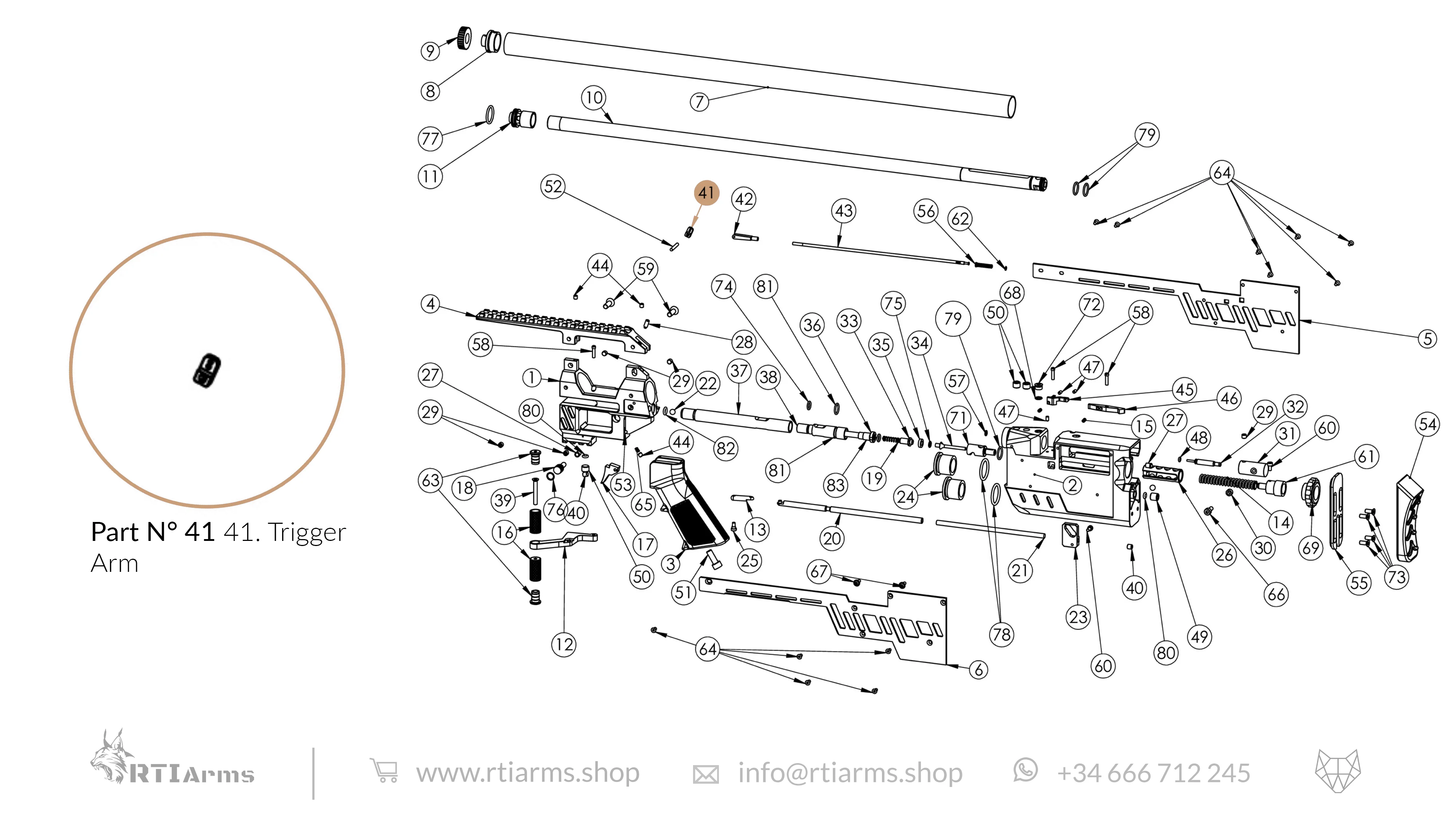

41- Trigger arm (x1)
42- Clevis (x1)
43- Trigger link rod (x1)
44- M4x4 DIN913 (x3)

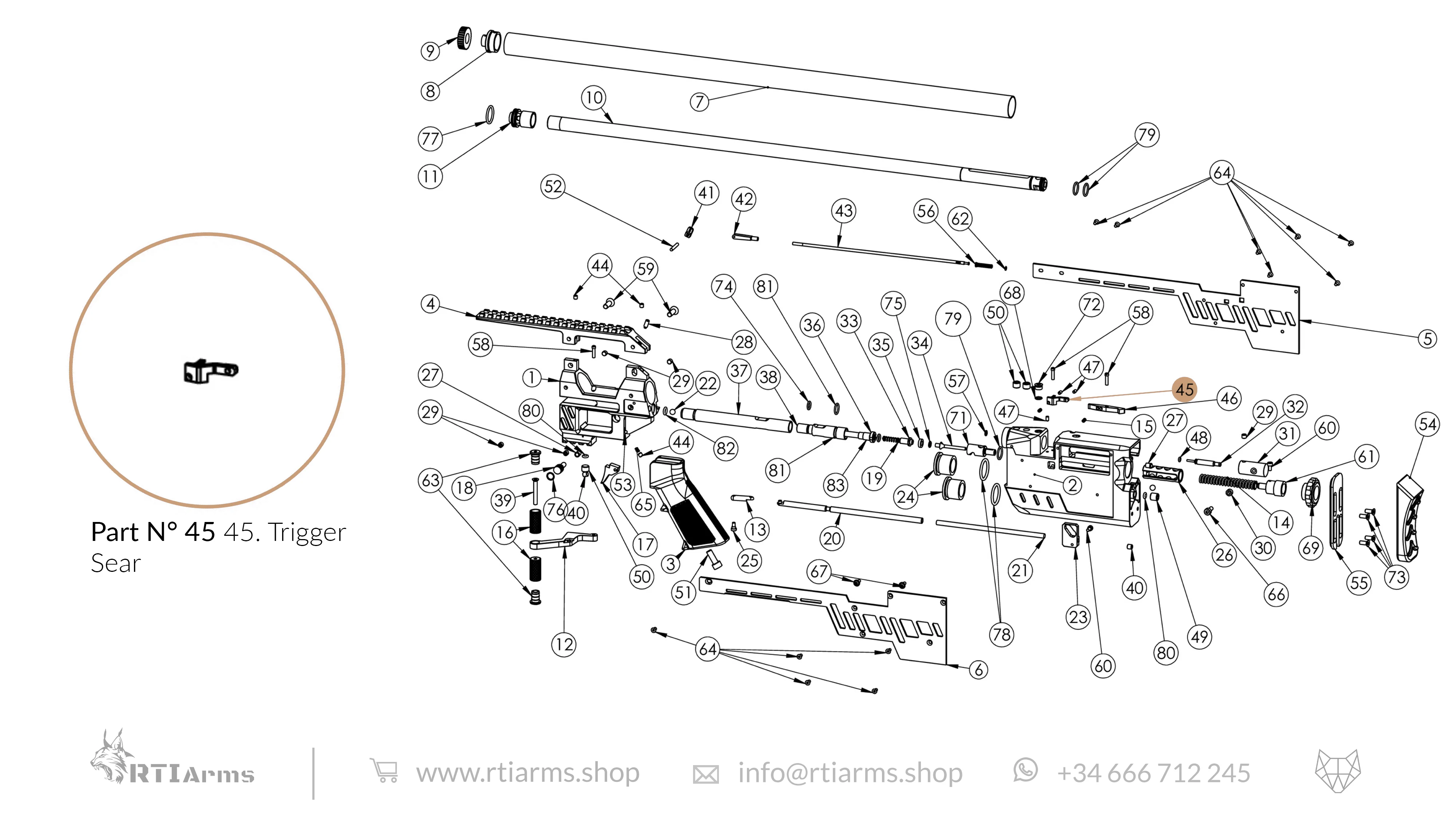

45- Trigger sear (x1)

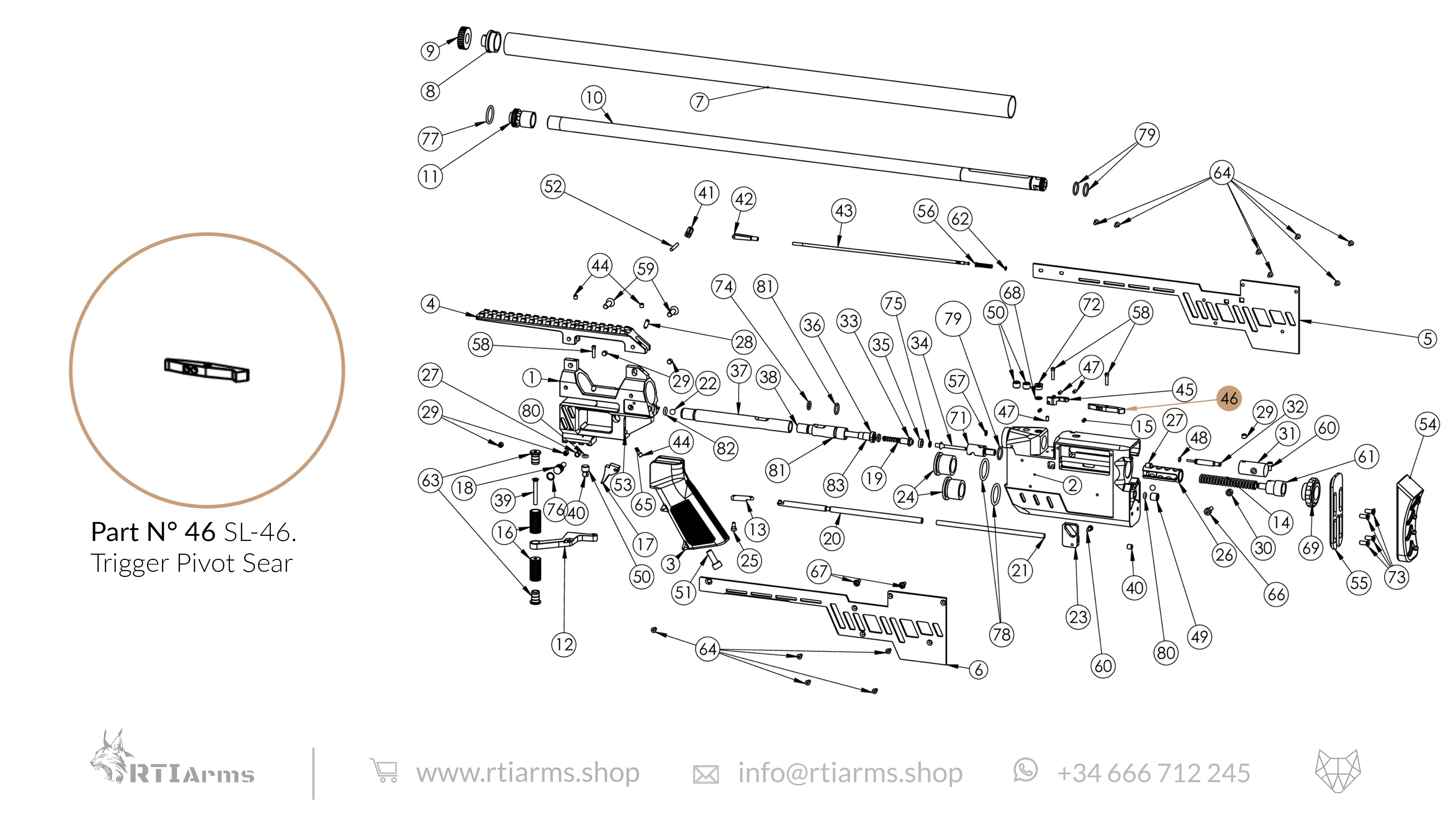

46- SL-46. Trigger pivot sear (x1)
